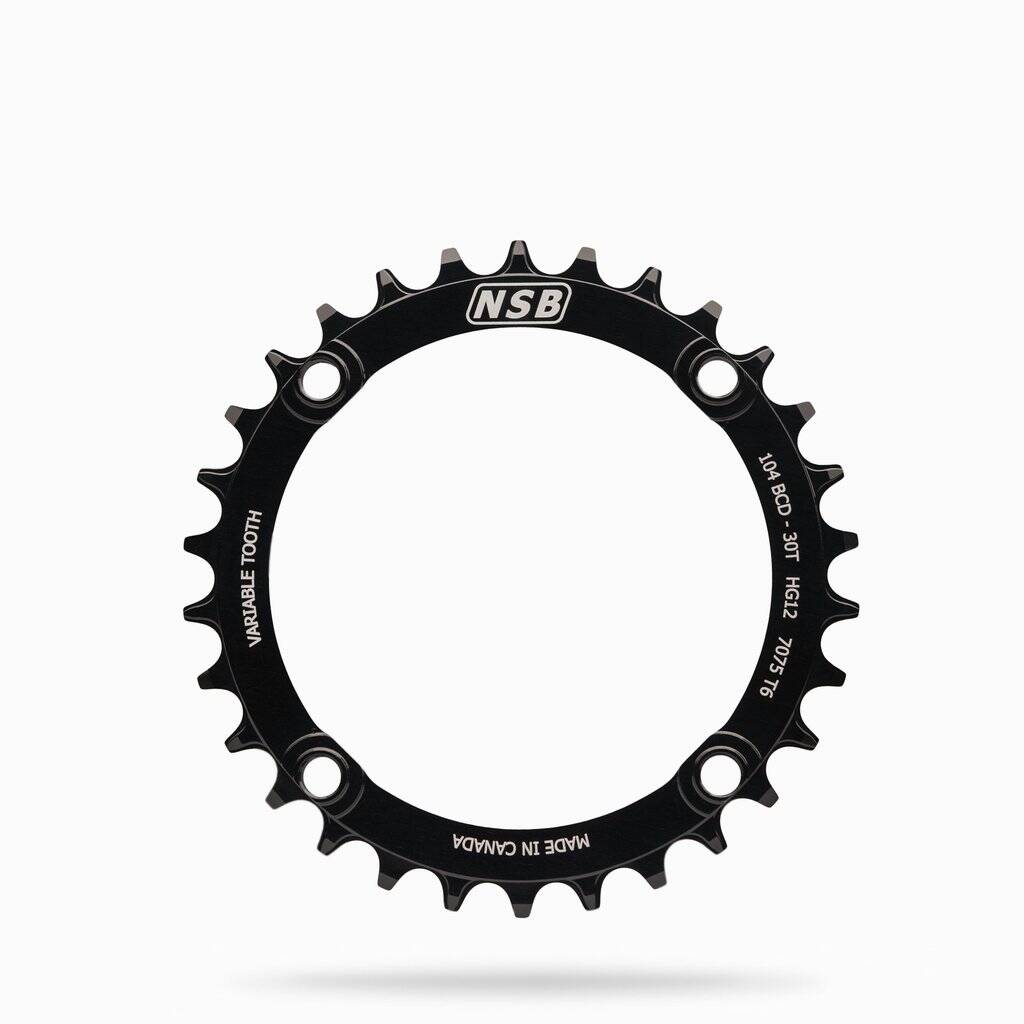

North Shore Billet 1x HG12 104 BCD Chainring

HG12 104 BCD Chainring by North Shore Billet

Our NSB 1x HG12 104 BCD specific chainring tooth profile is mated with our proven narrow-wide tooth pattern to help retain the chain on the front ring during all types of riding. Utilizing the most common bolt pattern – 104mm BCD – these rings can mount to almost any crank.

SPECIFICATIONS:

• 104mm Bolt Diameter Circle (104 BCD)
• Bottom Bracket Types: BB30   GXP    Boost
• Chainline: This varies with your crankset
• 30T: ~50mm on a 2×10 mid-ring mounting position
• 32T, 34T, 36T, 38T: ~52mm on a 2×10 mid-ring mounting position
• Machined from solid 7075 T6 Aluminum
• Anodized Black with Laser Etched Graphics

Compatible with Shimano 12-speed drivetrains only

Precision CNC Machined in Whistler, Canada.

WEIGHT:

• 28T – 45g
• 30T – 44g
• 32T – 40g
• 34T – 44g
• 36T – 58g
• 38T – 66g
