Prestaflator Bicycle Inflator – Air Compressor Tool

Prestaflator Bicycle Inflator – Presta and Schrader Air Compressor Tool

NEW patent-pending Big Angle Head

The our new head uses a larger diameter stepped Urethane insert for easier installation and tubeless-safe gentle removal.  It also provides a more secure seal and longer life.  The depth of the new head is designed so you can push-past the first detente, and then the Presta pin will be pressed internally so you can see an accurate pressure reading for the tire.

The original – Prestaflator!

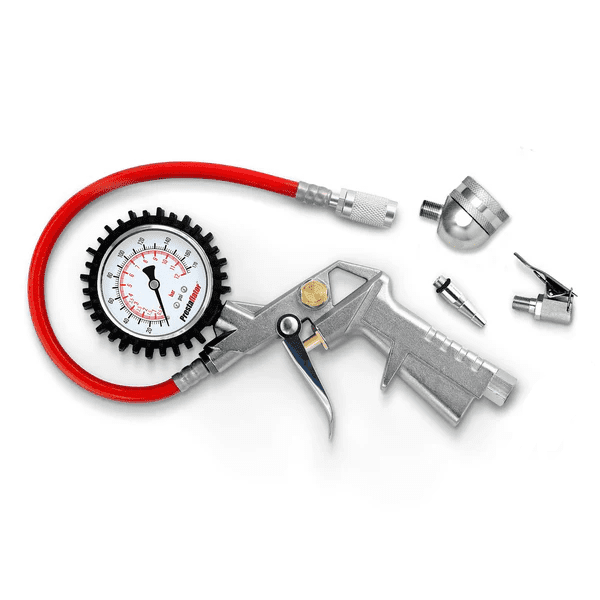

The Prestaflator is designed with a long-throw trigger valve. Use a light squeeze or brief, rapid shots to gently inflate Bike tires to your desired pressure over a few seconds. A full squeeze on the trigger provides maximum pressure for seating tubeless tires. The dial pressure gauge lets you follow your progress visually. Designed for MTB & Road tires with a wide range of pressure requirements.

NEW Urethane Elastomer Head for Tubeless & removable cores.

The Prestaflator uses our new angled push/pull head with Urethane Elastomer Grommet. It’s the fastest and easiest Presta valve connection. It’s softer and stronger than our previous version.  It lasts more than 5 times longer, gives a better seal and flexes to work anywhere along the Presta shaft for better tubeless tire application.

Quick-Click2™ Head for Tubeless & removable cores.

The Prestaflator Head includes a removable cap with our new Quick-Click2™ push/pull head. Quick-Click2™ is the fastest and easiest Presta valve connection. Our original Quick-Click™ and our new Quick-Click2™ heads should be used with all Tubeless applications and any tubes with removable valve cores.

1way / 2way Presta Inflation Head inside.

Inside the Prestaflator head is our 1 way / 2 way Spin-on Presta design for inflating and deflating tires with traditional Presta valves. A few quick turns secures the head to the cap threads on the Presta valve and provides an air-tight seal. It has an internal sliding-action. Push the hose towards the head to push the Presta valve air release button without removing the head. This allows the Prestaflator to take a tire pressure reading without being connected to an Air Compressor. It can also let air out of the tire by simultaneously pushing the hose and pressing the air release button on the side of the Prestaflator handle. When you inflate or take a pressure reading, the head automatically slides back away from the Presta button. This returns the Presta valve to it’s natural one-way operation. This means there’s absolutely NO pressure loss when you disconnect the head from the tire.

The best accessories are included to make it a multi-purpose tool:

Remove the cap to screw-on Prestaflator accessory heads quickly without tools.

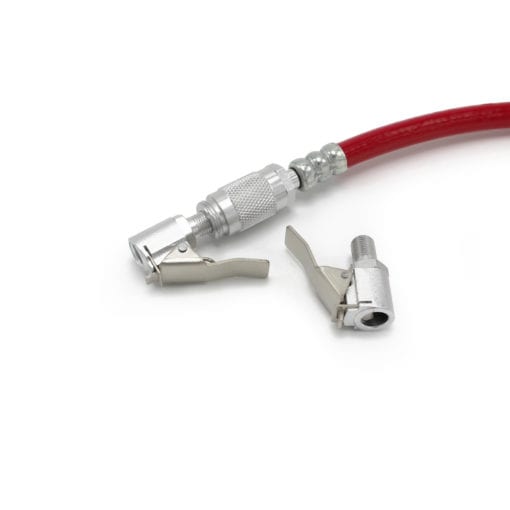

• Schrader Auto Head

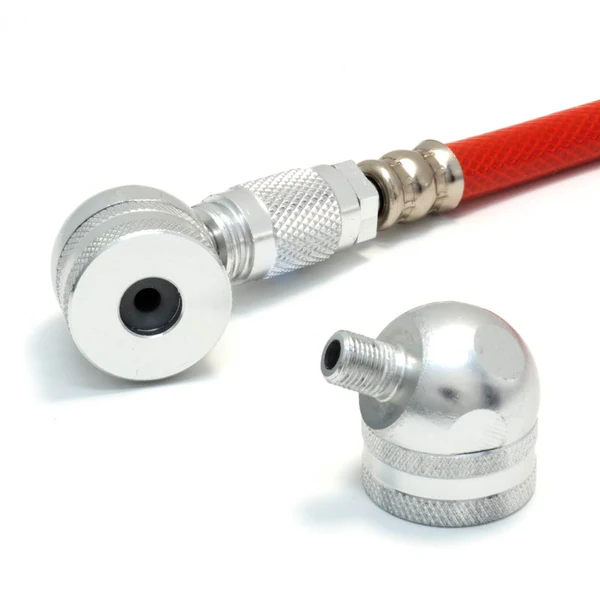

• Big Angle Presta Head

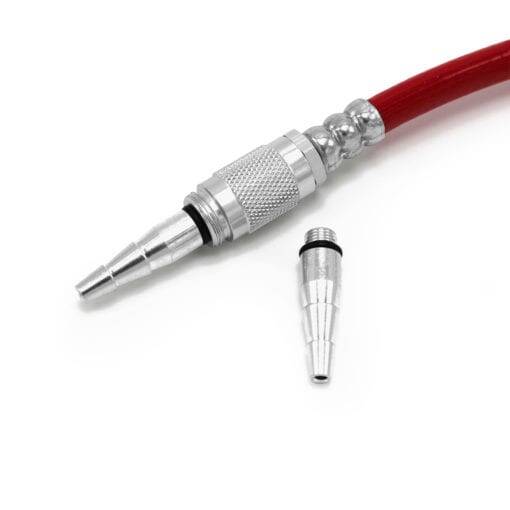

• Safety Blower Tip

Add optional accessories for even more functionality:

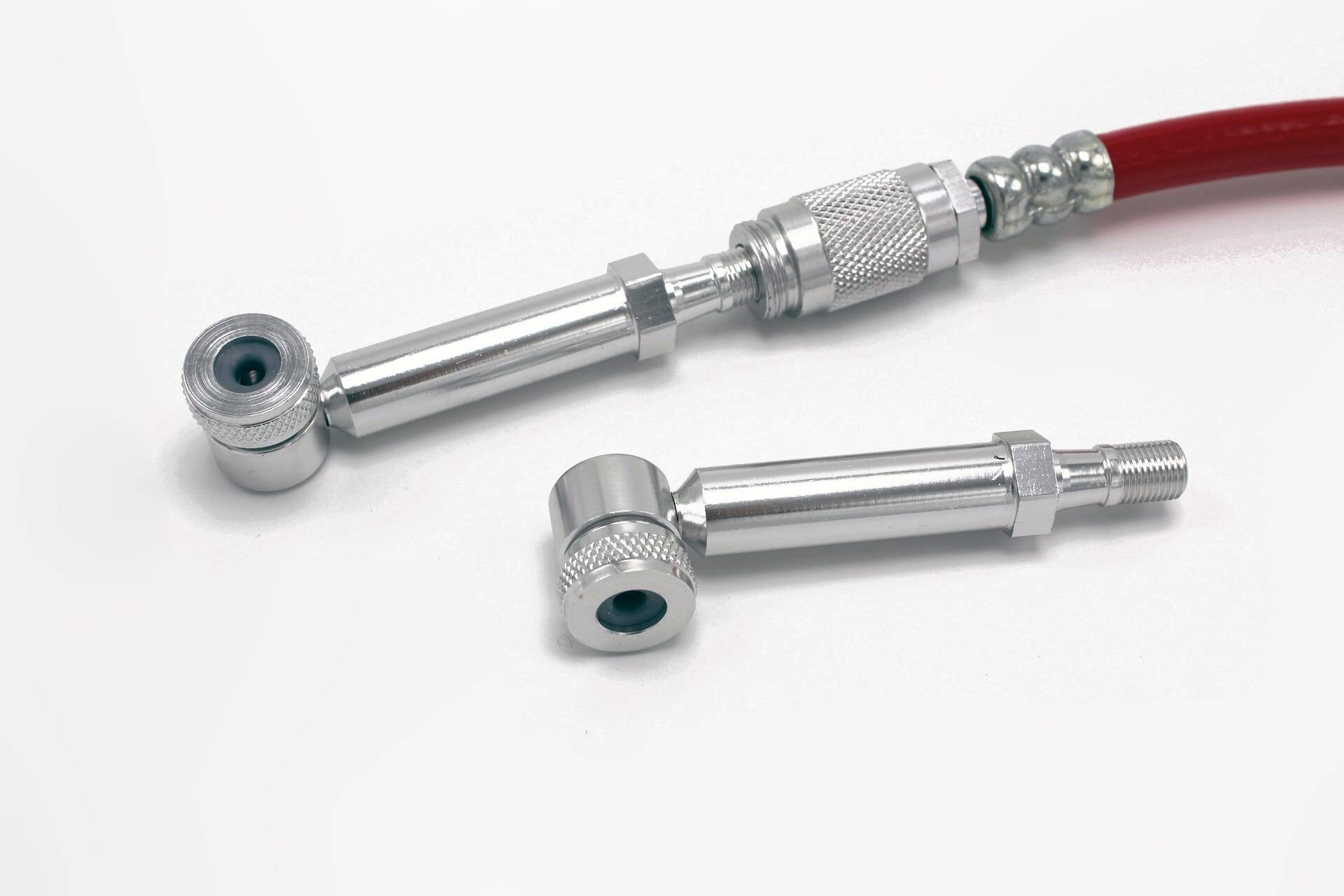

• Quick-Click2™ Disc Head

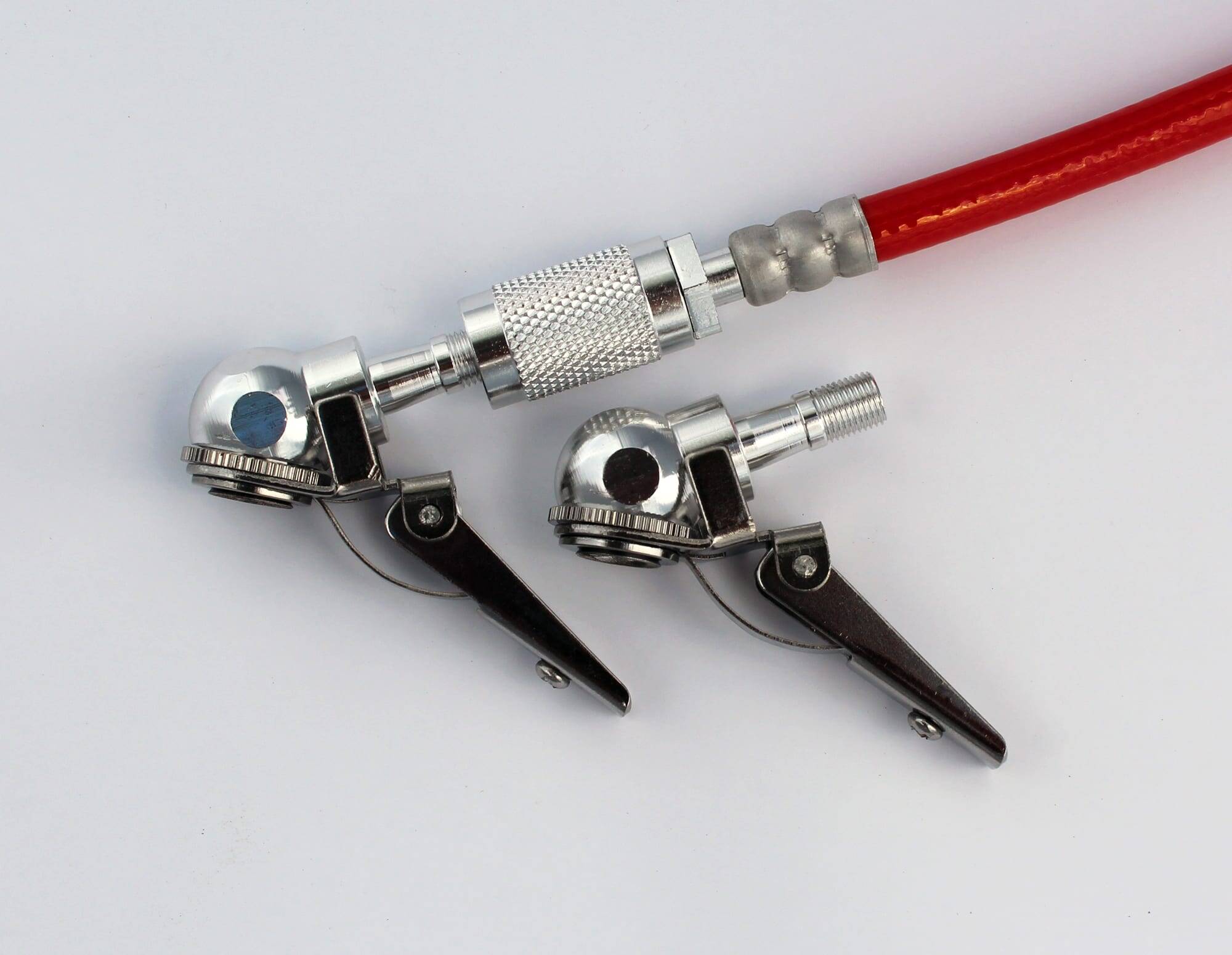

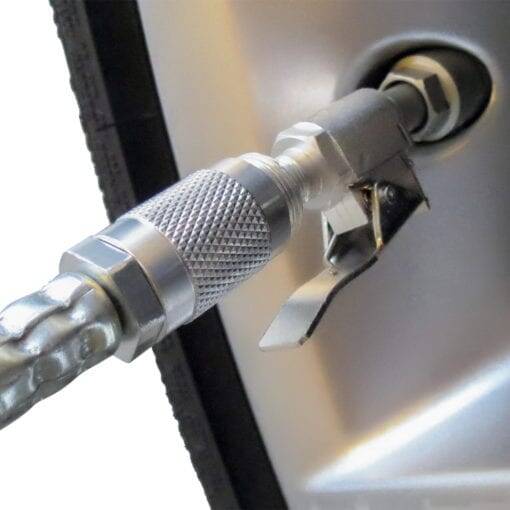

• Right Angle Schrader Head
• Quick-Click2™ Angle Head

Quick-Click2™ has the best seal plus the easiest installation & removal of any Disc head. Smallest head – fits ALL Disc wheels. Works so well it’s an everyday-use Presta head. Right-angle design is great for tight areas with Standard Schrader air valves. Firm spring clip holds at high pressures. Low profile design fits Kids bikes, Scooters and Motorcycles. The Big Quick-Click™ push/pull Tubeless Presta head works with or without the valve core removed for high flow tire seating. Shop duty for long-life Presta inflation. Prestacycle 1/4″ I/M 6061-T6 Alloy Quick Coupler Kit upgrades all your air tools to Prestacycle quality. 1/3 the weight of Steel or Brass, makes your air hose easier to handle.

Quality

Prestaflator is engineered specifically for the needs of bicycles and bicyclists. Only top quality materials are used for it’s components. We start with a cast Aluminum body and give it a bead blasted finish. Next we use 6061-T6 Alloy, Chrome and Stainless Steel components for all connectors and moving parts. The hose is made in USA of reinforced polyurethane. It’s 3X more flexible than our original Black hose and is rated for 300 PSI of continuous use. Smooth alloy clamps on the hose are more comfortable for use of the spinner head and are corrosion resistant.

Prestaflator’s unique variable-rate trigger plunger is long and narrow. Behind the trigger is a high-force spring. This allows the user to more easily regulate very small amounts of air to reach the exact pressure desired in even the smallest racing tires.

The pressure gauge has a durable steel case covered with a rubber shock housing and offers accuracy with +/- 2%.  The dial has a bicycle-specific pressure range of 12 Bar/174 PSI. It’s high enough to inflate any daily-use tire, but not excessive so the gauge is easy to read.

Serviceability

Prestaflator is designed to offer years of reliable service. The body has a ¼” male threaded adapter so you can install many types of connectors. It comes with the most commonly-used ¼” I/M Quick Coupler in the box and ready to install with no tape or glue needed.

The hose, trigger and pressure release mechanisms are all threaded and installed using #7 O-Rings. They can all be removed and serviced with a 14 mm wrench. We offer rebuild kits so you can service and maintain your Prestaflator anytime.

The Presta / Schrader heads and couplers are made of 6061-T6 Alloy. They’re as strong as Brass, but only 1/3 the weight. This is no place for plastic. Drop your hose on the concrete with plastic pump heads and they could break. The Presta head connects to your tire valve with our new improved easy-on easy-off “24.1 pump head gasket”. Replacements are available through any cycling supply source.

Prestaflator – The Original

Beware of fakes and cheap imitations sold by one-product sellers.  These are not real brands that can stand behind your product.    Prestacycle is the originator of the Prestaflator.  We are a full-line Bicycle tools company providing the Cycling industry globally with world-class tool designs.  Our R&D has created a proven design that we have consistently improved-upon through years of experience.

Prestaflator is different… a high quality, serviceable tool… designed, built and warranted for use on Bicycles.

Prestaflator Pro Bicycle Inflator Specifications

• • Machined Brass internals for superior inflation accuracy
  • Large 2 ¼” / 6 cm dial pressure gauge.
  • 174 PSI (in 2 PSI increments).
  • 12 Bar (in 0.1 Bar increments).
  • Works as a pressure checker w/ 2way head.
  • Variable-rate trigger!
  • Presta AND Schrader!
  • Professional shop-grade tool.
  • 6061-T6 Alloy Presta Head.
  • Replaceable I/M compressor quick-release attachment.
  • Rubber pressure gauge housing for shock protection.
  • Cast aluminum pistol grip handle with bead-blasted finish.
  • Two-finger trigger valve for precise air flow regulation.
  • Thumb-control pressure release button.
  • High-pressure hose for easy access on any wheel.
  • Head accepts many thread-on accessory Heads.

FAQ’s

Can I get or change the gauge to a lower pressure range?

Please check-out our Digital tool for easy-to-use pressure readings at any level!

We don’t put lower range analog gauges on our tool, and our custom threads intentionally prevent users from doing this.

Most reasonably-priced consumer air compressors hold anywhere from 100 – 155 psi these days.  All it takes is for one-time to forget to unscrew and push the presta valve, and the first shot with the Prestaflator will instantly load the tool with the full pressure of the compressor.  If that pressure is higher than the gauge can read, the gauge has been instantly destroyed.

While compressors do have regulators to control output pressure, many consumers don’t understand the need to use them, and even when they do, they might have multiple applications for their compressor and forget to re-set when using a low pressure inflator.

Is it safe to use an air compressor with bicycle tires?

Your concern is exactly what Prestaflator was designed for. The Prestaflator offers a unique variable-rate trigger valve. Short bursts or a light squeeze on the trigger flows less air. Keep one finger or your thumb behind the trigger, and you can easily regulate small additions.

I am not familiar with your Quick Presta heads. How do I use it?

Just push the head onto the valve. Just enough to get past the loosened cap of the valve. You will feel a slight “click” sensation. It’s now on right where you need it. Threadless Presta valves may fall back into the rim when the tire is empty. Push on the tire side under the valve to keep it sticking out.

Why is the head sometimes hard to install or remove from the tire valve?

This problem has come-up more often with a few different brands of newer Presta valves. The problem has been that tube and tire makers increased the diameter of the spin cap of the Presta valve. That caused airflow blockage, and then bikers would push the head onto the valve farther than it is supposed to go. Once it’s on too far, it’s very hard to get off.

We’ve come out with a new design for the Rubber insert that solves this problem. It works great, and it goes on and off all new and old types of Presta valves very easily. All Prestaflator tools and Prestaflator Rebuild Kits shipped after June 10 2012 have this new 2013 model Rubber insert. You can purchase the Prestaflator Rebuild Kit to update any older Prestaflator tool. It also updates similar Silca Pump Heads.

How does it work for Schrader valves?

The hose threads right onto Schraeder valves.  Our optional Quick-clip Schrader head is high pressure rated and faster for more frequent Schrader use.

Does Prestaflator release air from the tire with the push button?

No.  Our Quick heads are one-way only. We’ve designed our tool with a variable rate trigger which allows you to ease-up to the exact pressure you want. And once you take our head off, nothing from inside the tire is lost.

Does the gauge read the pressure in the tire or the incoming air pressure?

Once inflation has begun the gauge shows the pressure of the tire. It holds the tire pressure reading after inflation until the tool or pressure button is released. Technically speaking, it measures the pressure you have allowed to pass-through with the variable-rate trigger into the tool. The pressure inside the tool is equalized with the pressure inside the tire because pressure opens the presta valve. The presta valve closes itself when the pressure on both sides is equal.

Are there different kinds of Presta valves?

Presta Valves (also known as French valves) are standard. The greatest variation is whether or not the body is threaded for a hold-down nut. The Head used on the Prestaflator fits all types of Presta valves. The head maintains contact by friction with a rubber grommet.
