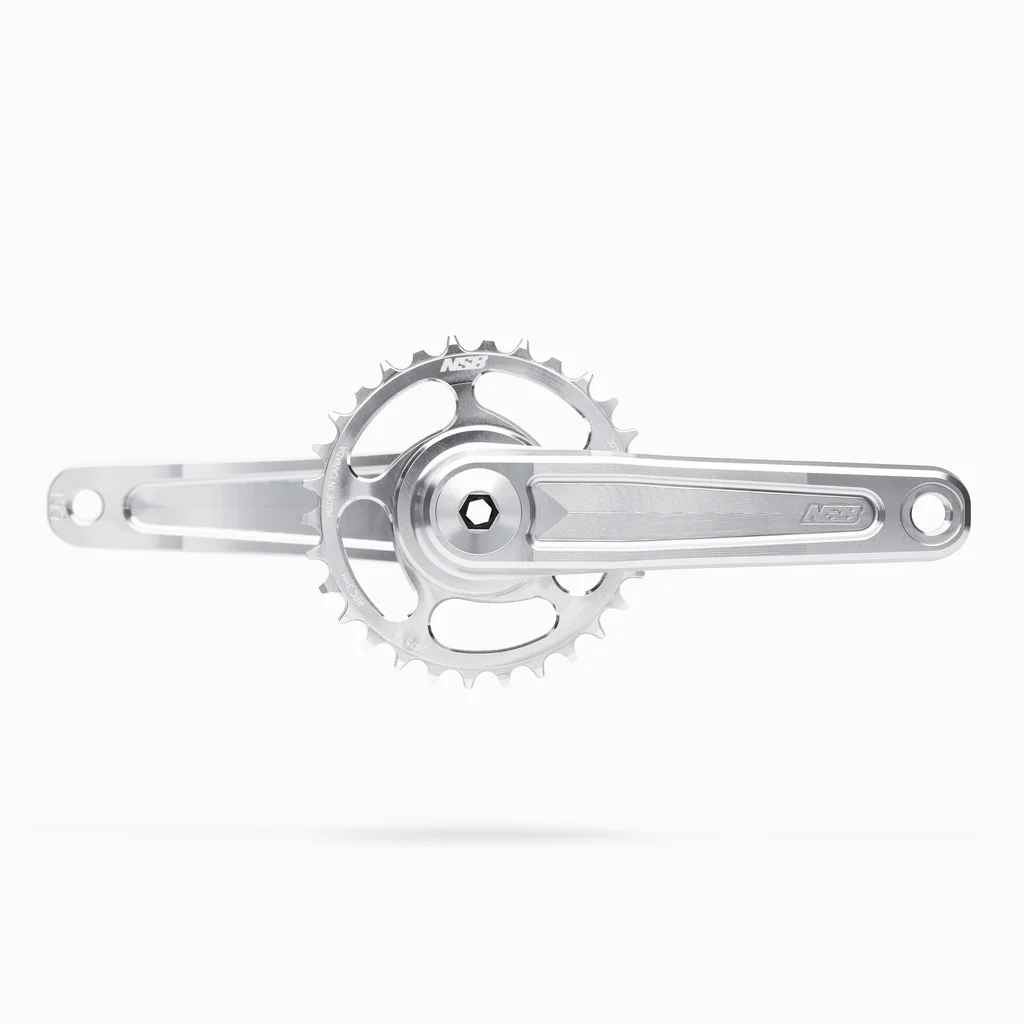

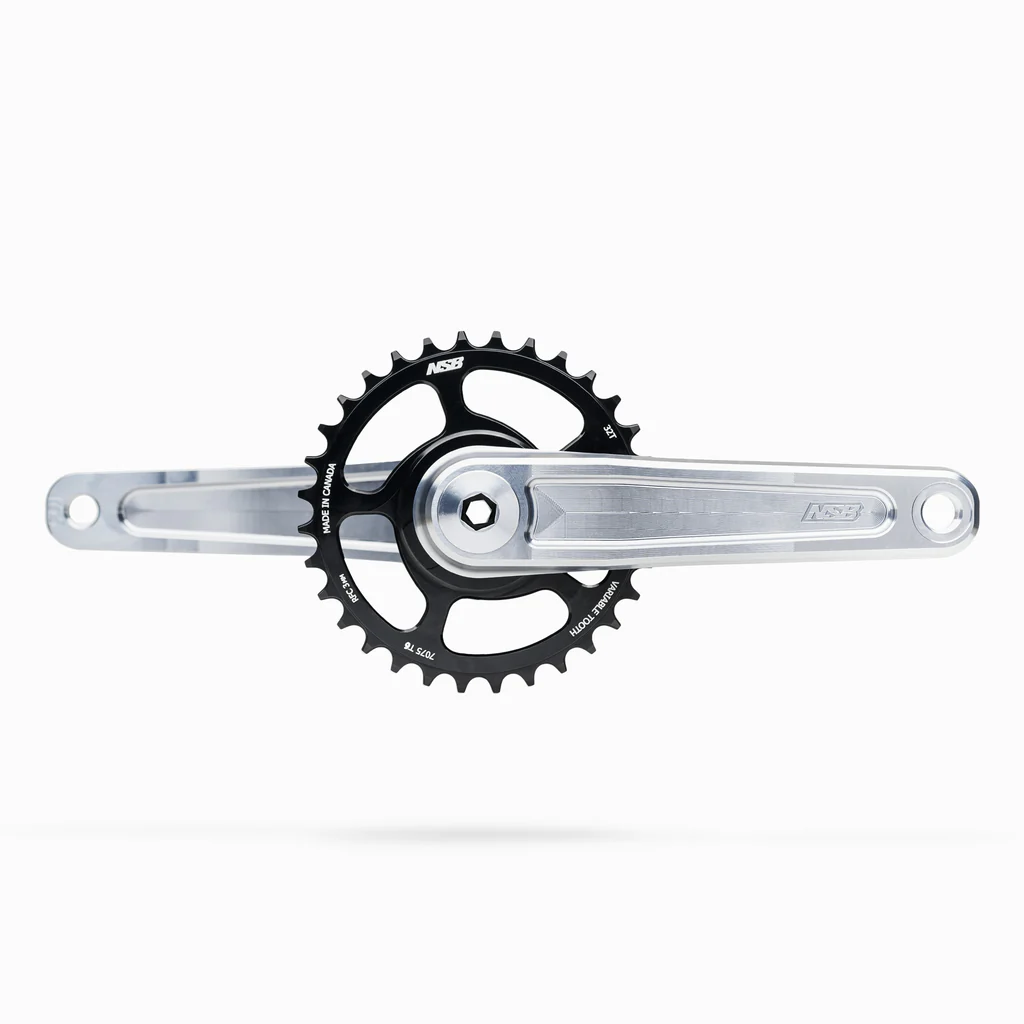

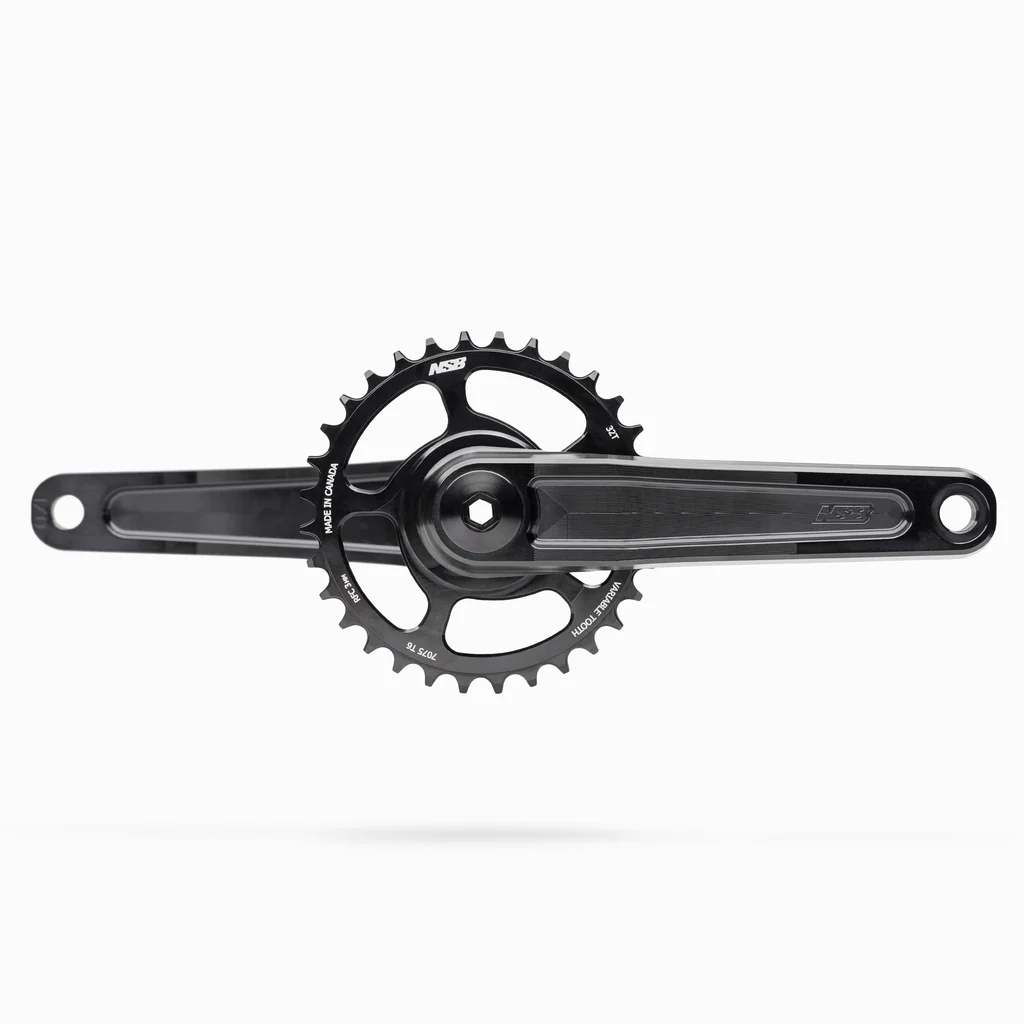

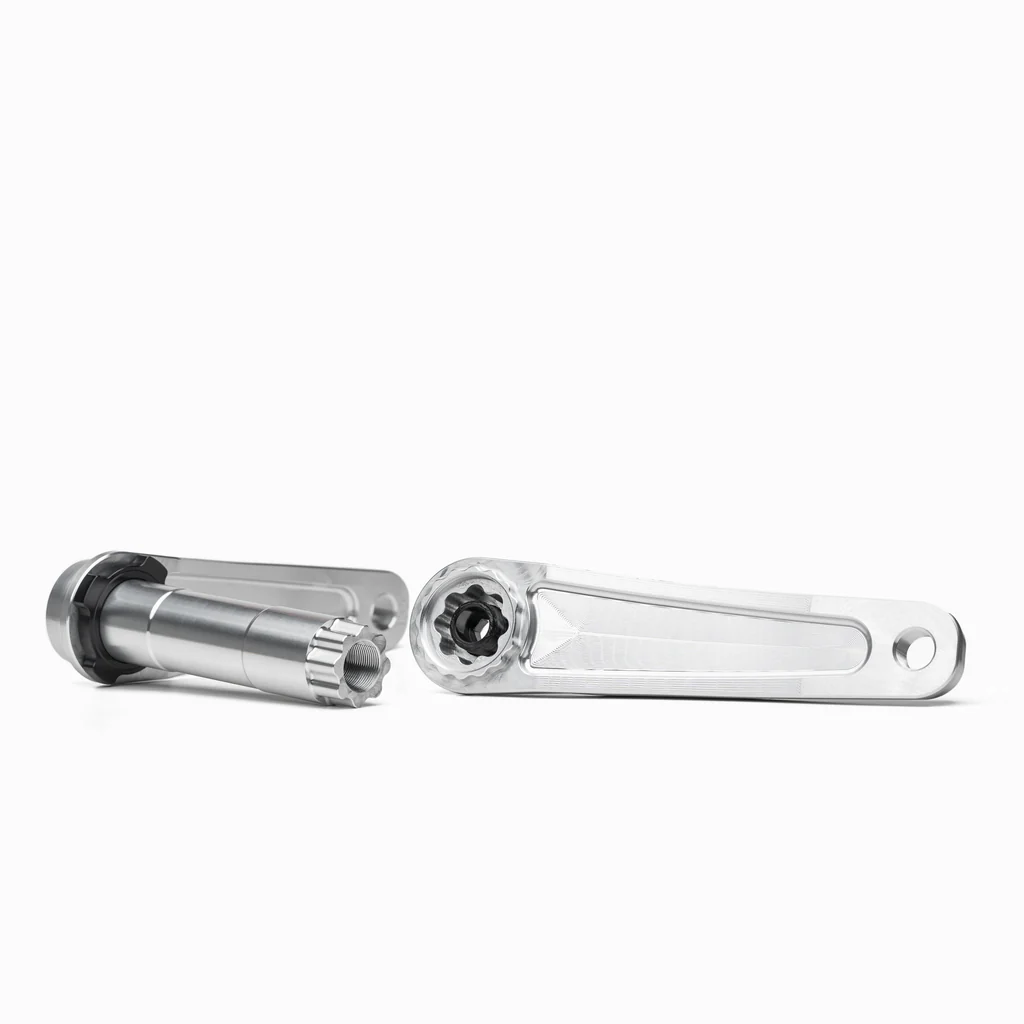

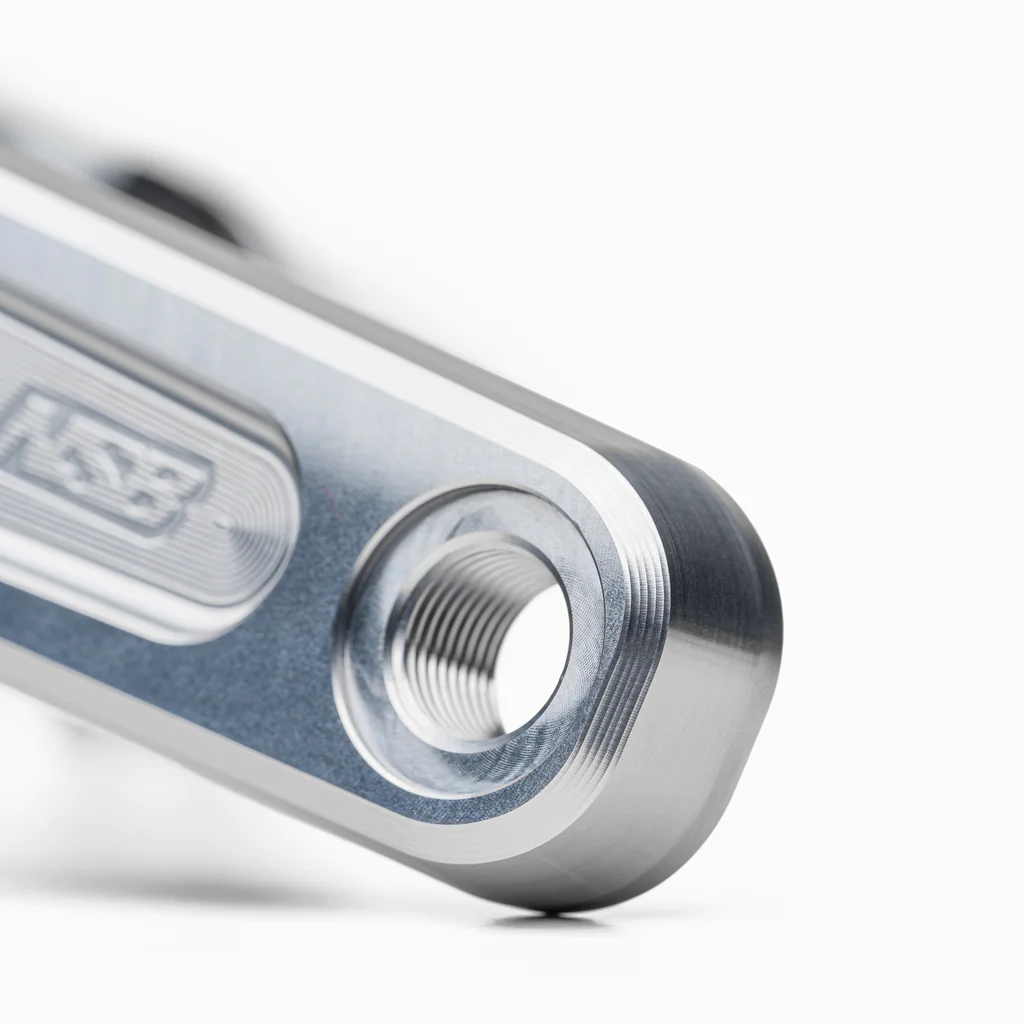

North Shore Billet Talon Crankset

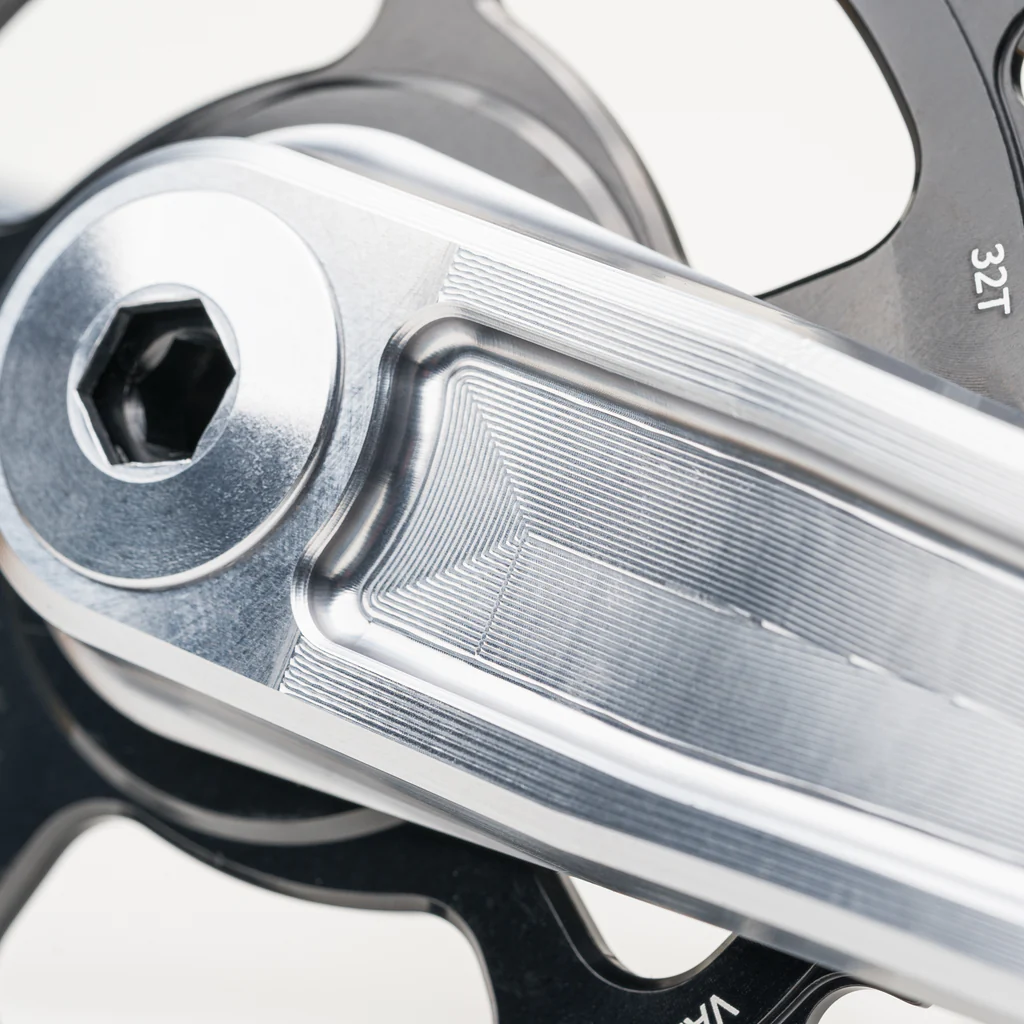

Our new enduro and downhill crank is precision machined from 7075 T6 aluminum in our Whistler machine shop. After more than two years of development and successful independent strength and fatigue testing at EFBE Pruftechnik in Germany, we’re excited to release these to everyone. The crankset does not come with a chainring, we can supply a number of different options with a combination discount.

Fits:

• 133.5mm Spindle Length:
  • Enduro bikes with 73mm threaded and PF92 BBs
  • 171.4mm Q-Factor
  • 52mm chainline with 3mm offset ring
  • 55mm chainline with 0mm offset ring

• 148.5mm Spindle Length:
  • Downhill bikes with 83mm threaded BBs and PF107 BBs
  • 186.4mm Q-Factor
  • 56.5mm chainline with 6mm offset ring

Specifications:

• Three-piece design

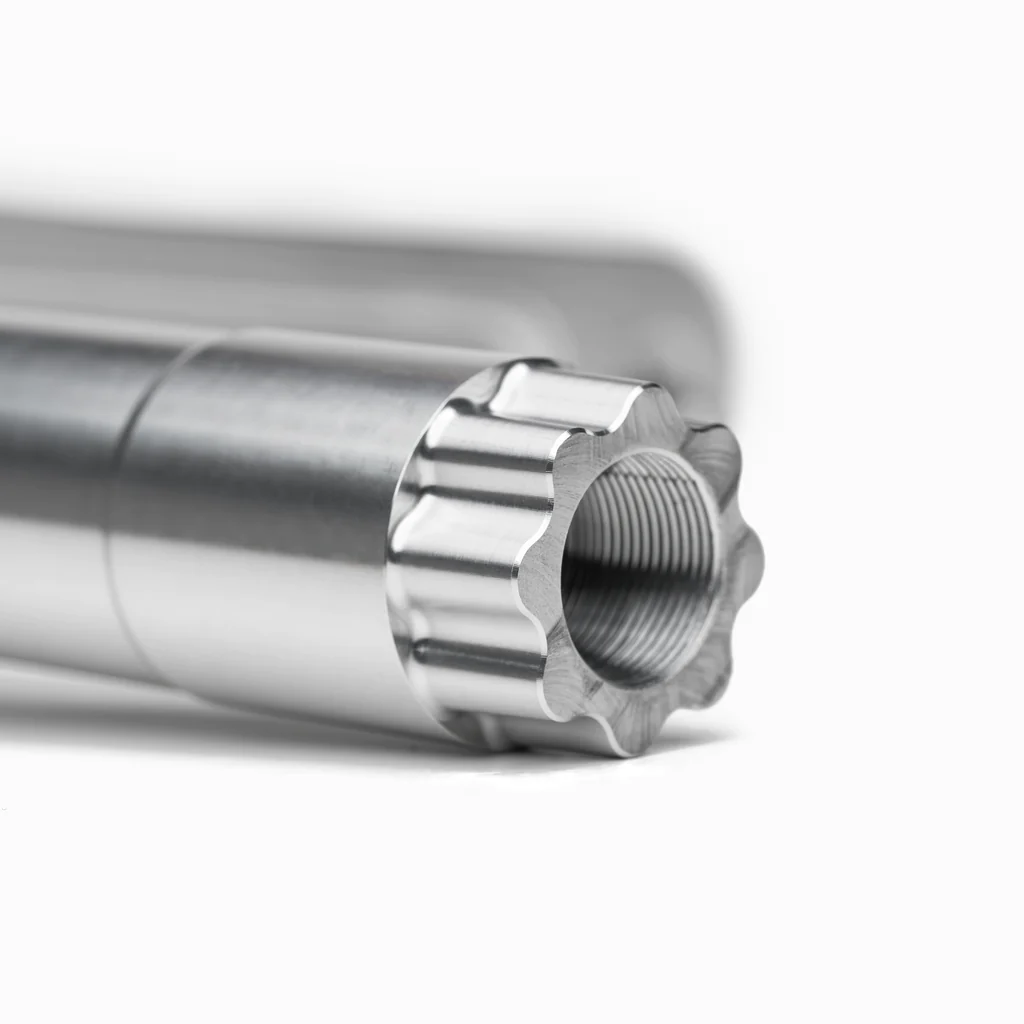

• 30mm crank spindle diameter

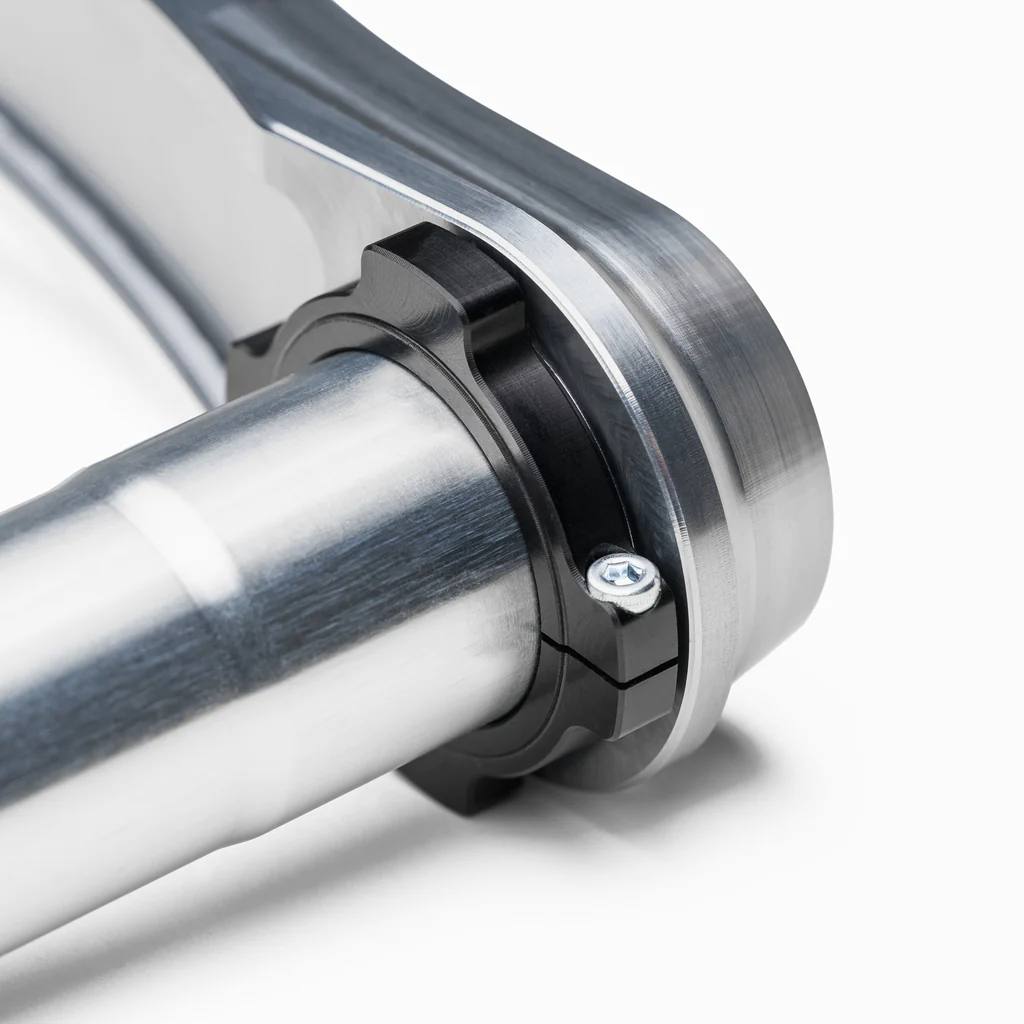

• Aluminum preloader
• Available in four lengths: 155mm, 160mm, 165mm, 170mm
• Machined from 7075 T6 aluminum

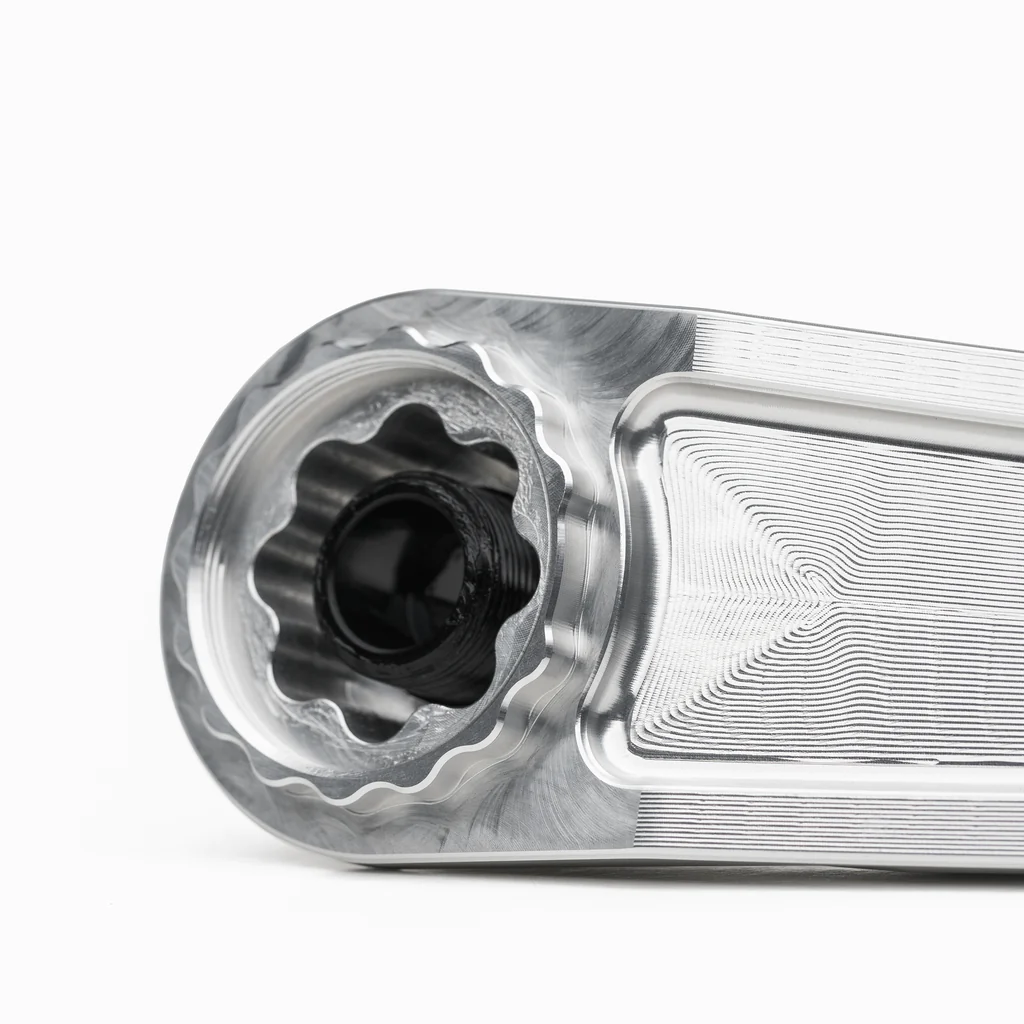

• Cinch chainring mount
• Weight:
  • 630g – 155mm w/ 133.5mm spindle
  • 654g – 160mm w/ 133.5mm spindle
  • 660g – 165mm w/ 133.5mm spindle
  • 670g – 170mm w/ 133.5mm spindle
• Manufactured in Whistler, Canada

Download the Installation instructions here.
